3D Interferometer Fiber Optic Scope Surface Inspection

• Brand: DATA-PIXEL
• Part# 70-3DSF-V2-M10-00
• Type: 3D Scope Surface Inspection Interferometer
• Country: Made in France
• Condition: USED/Excellent condition

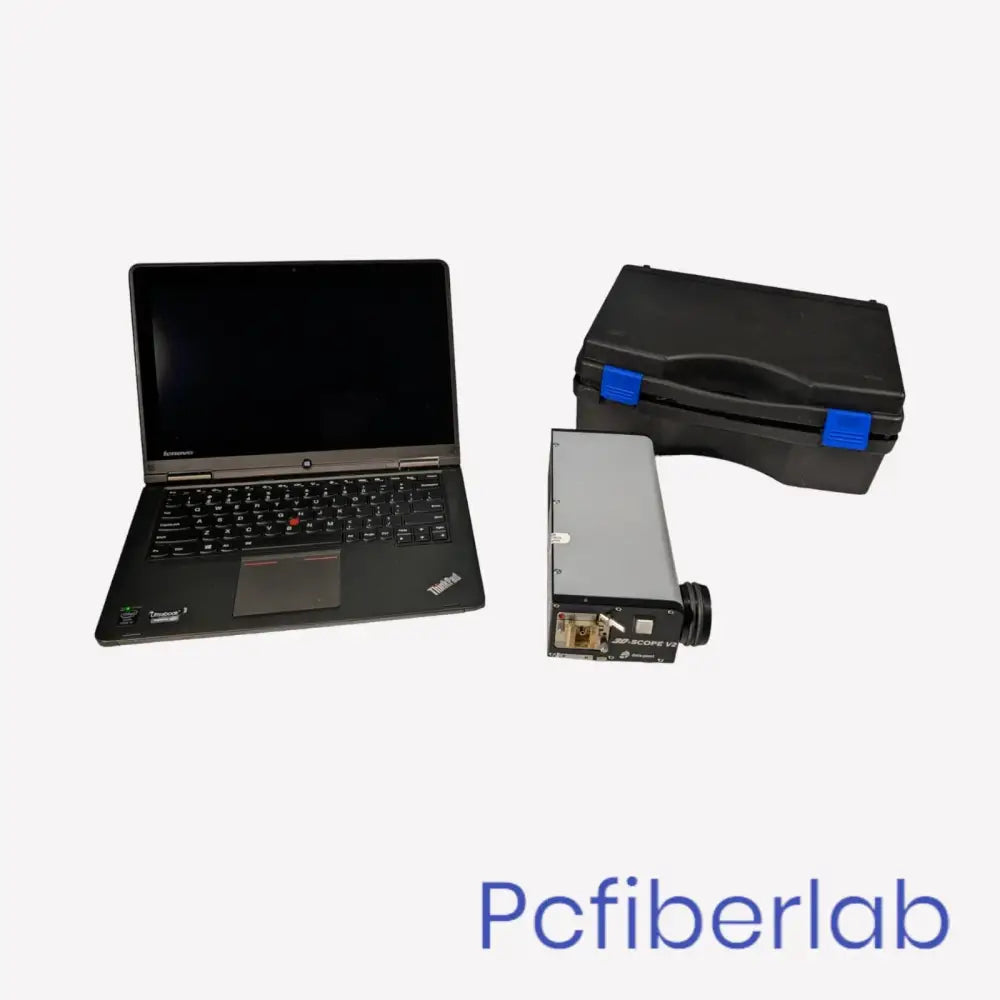

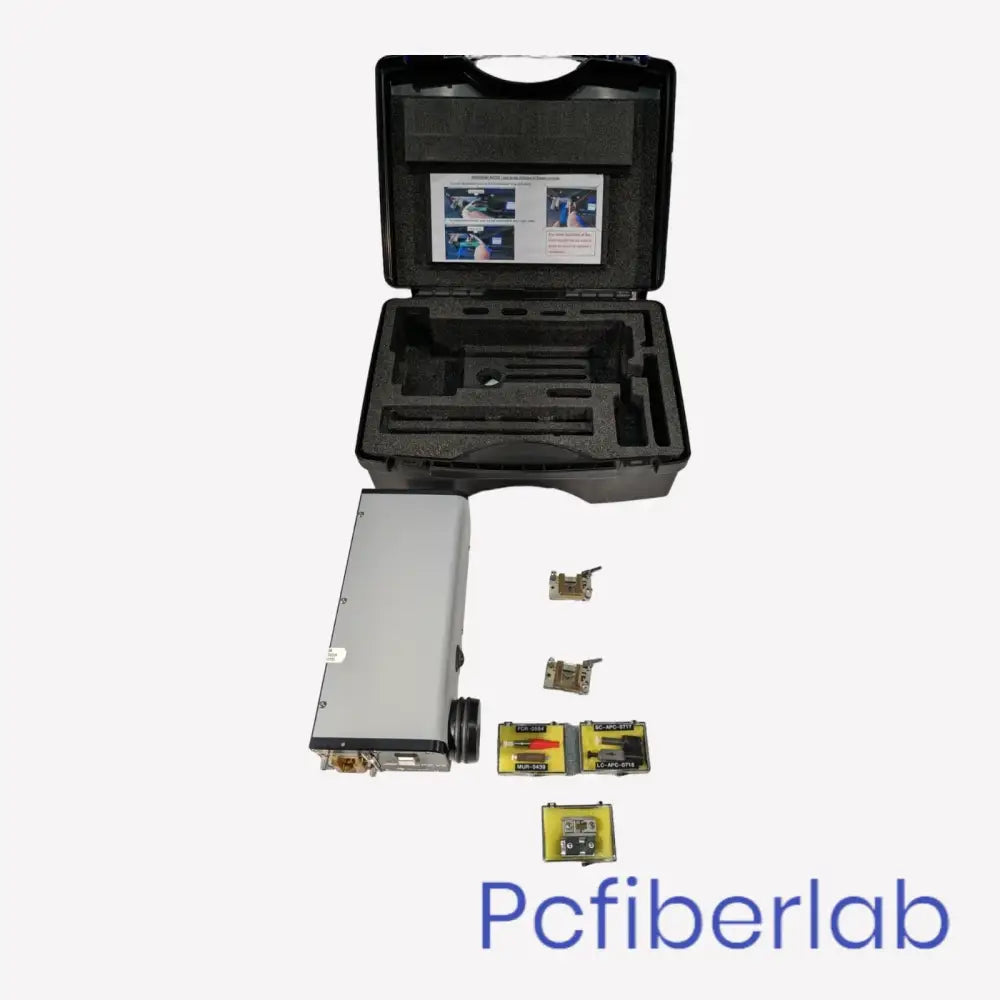

Set Include:

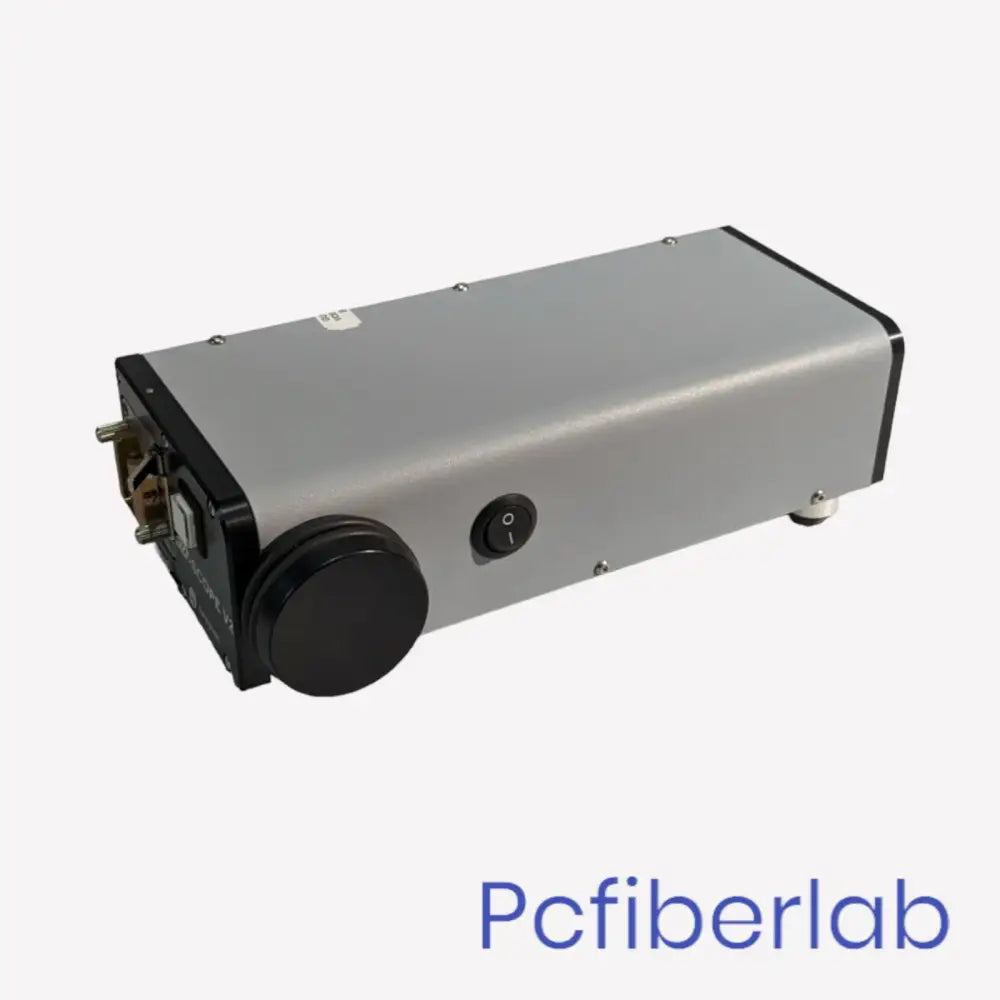

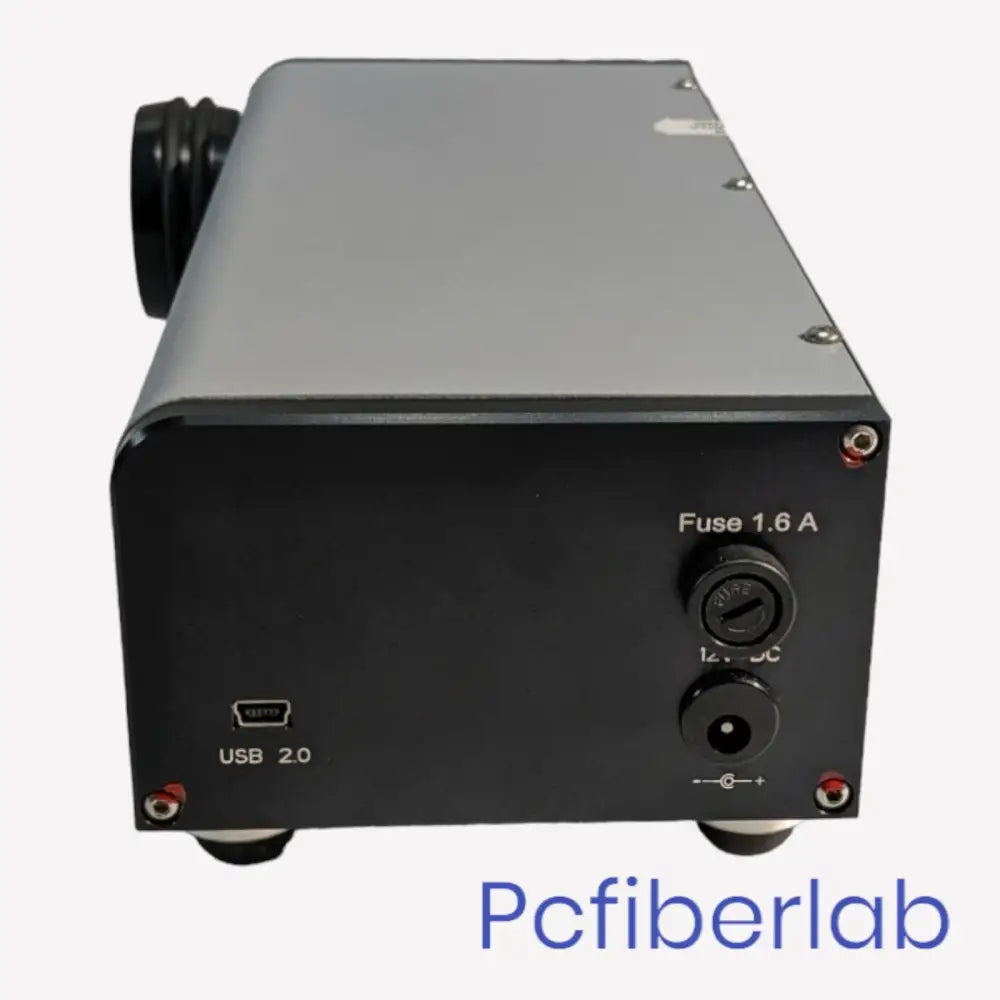

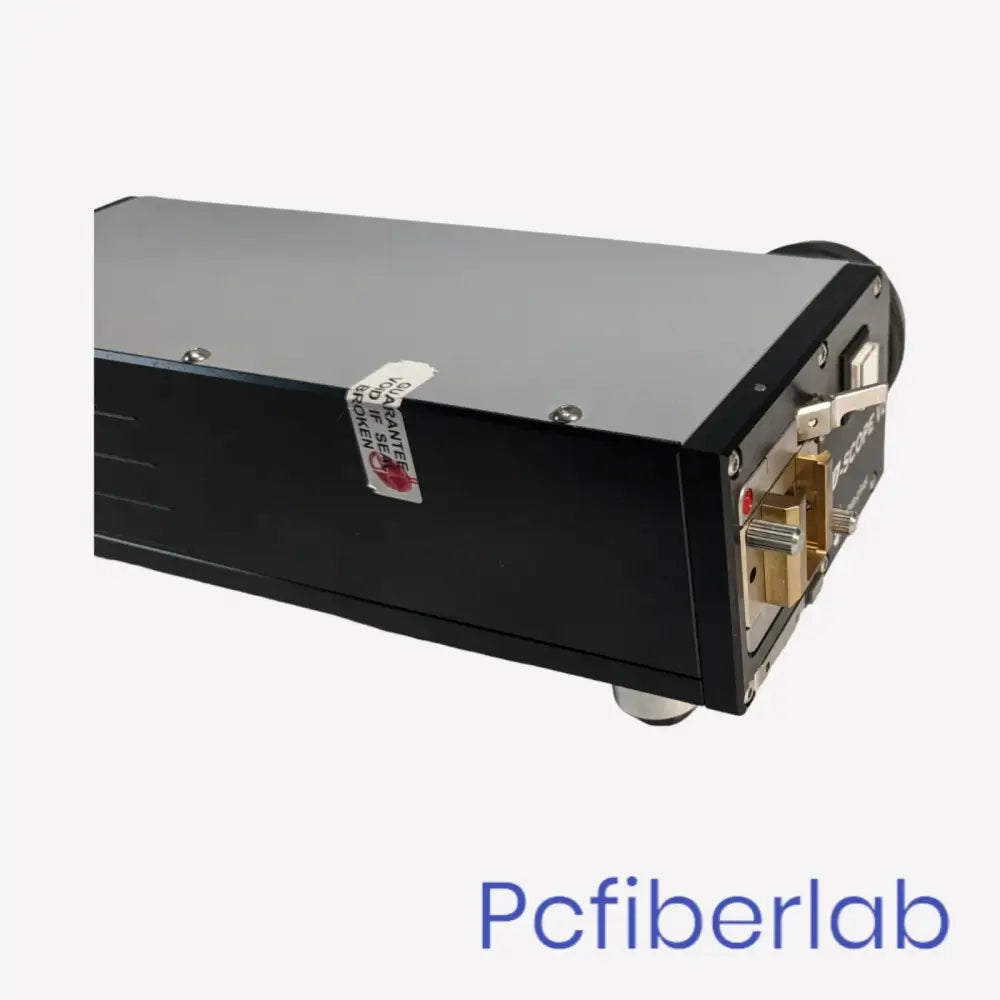

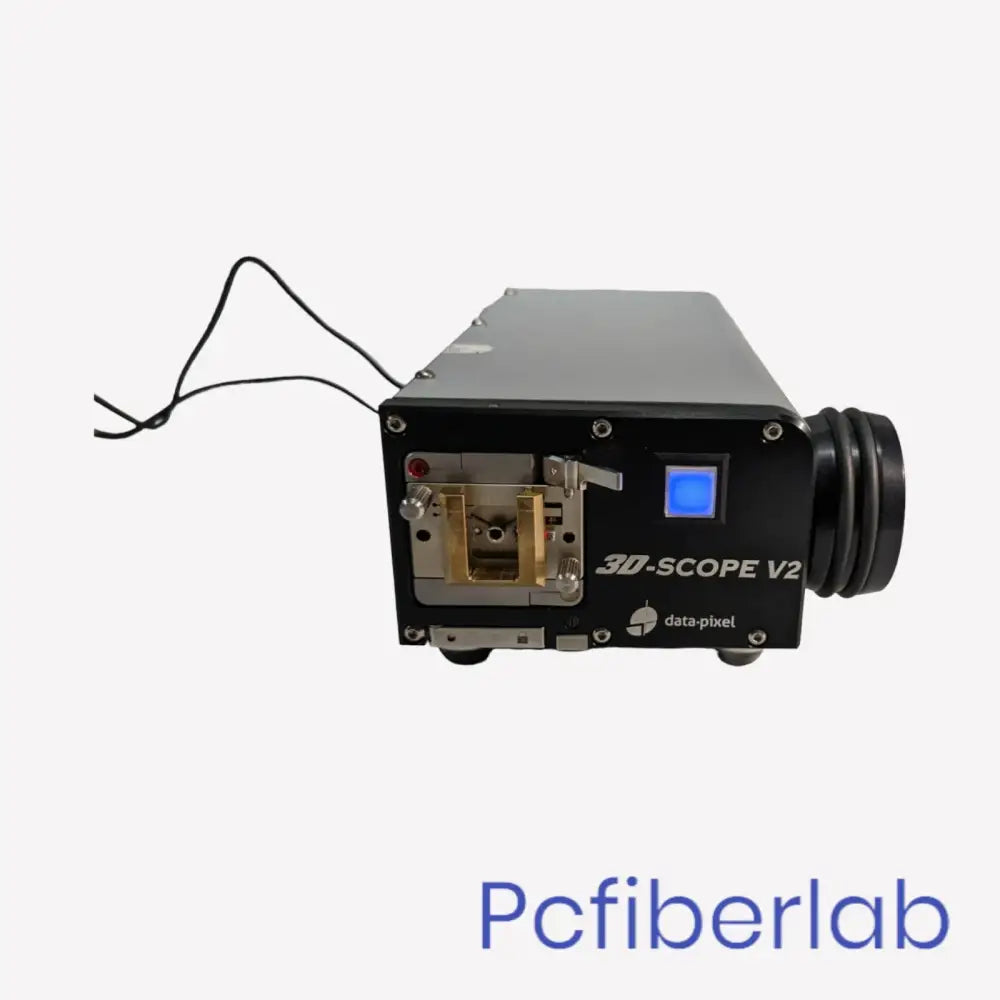

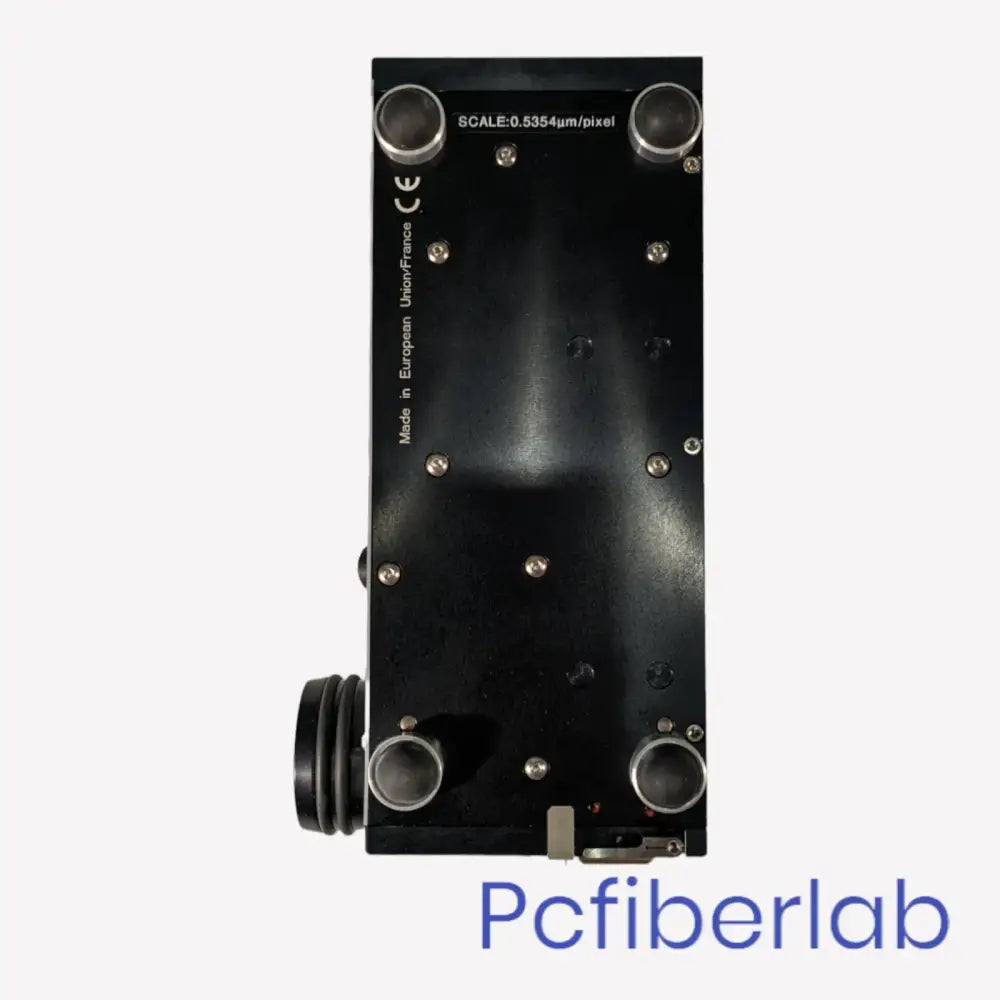

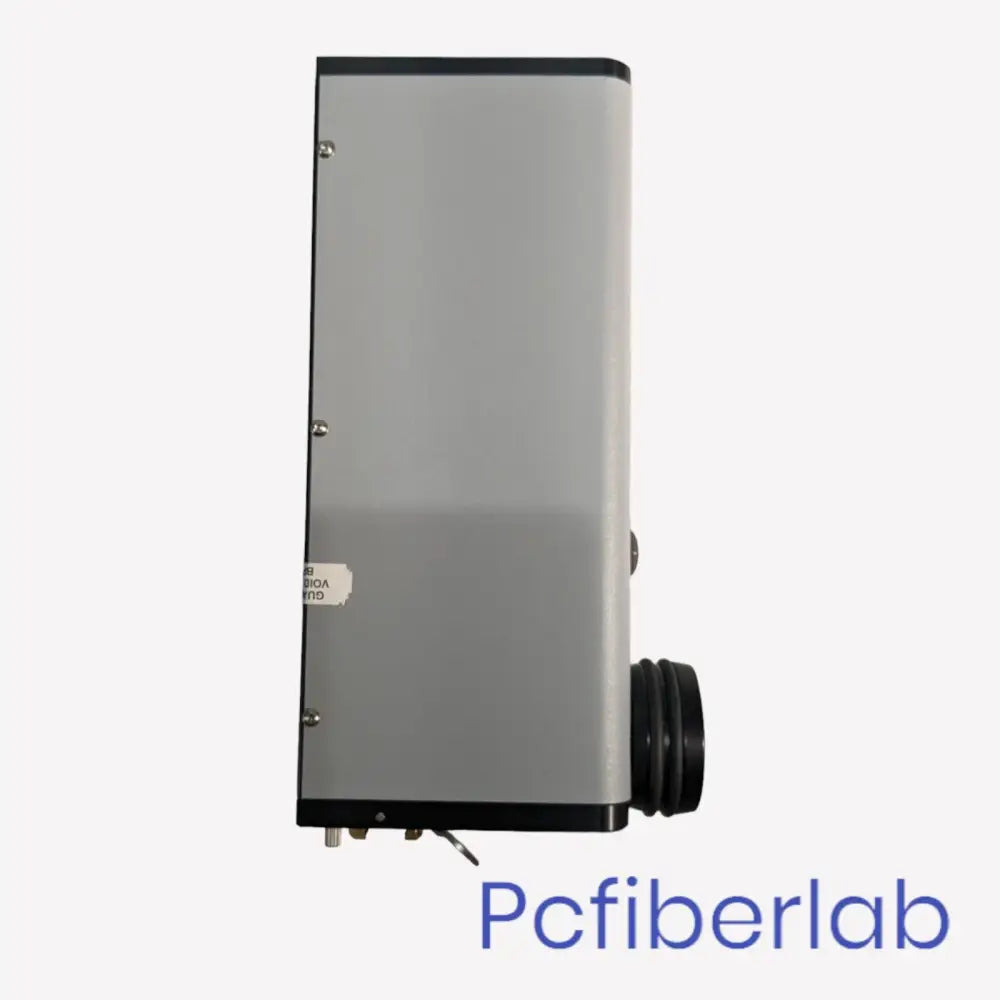

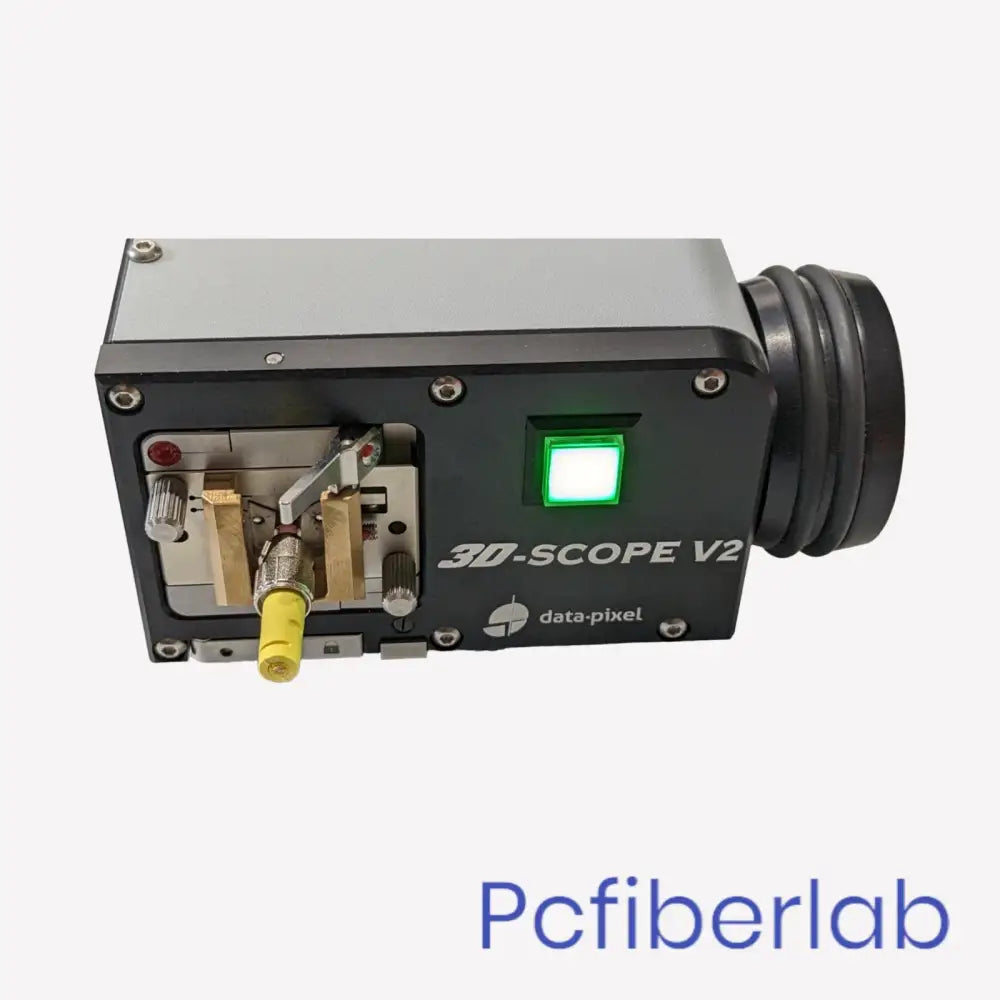

1. 70-3DSF-V2-M10-00 3D Scope-V2

   unit with Manual focus and Blink interferometry

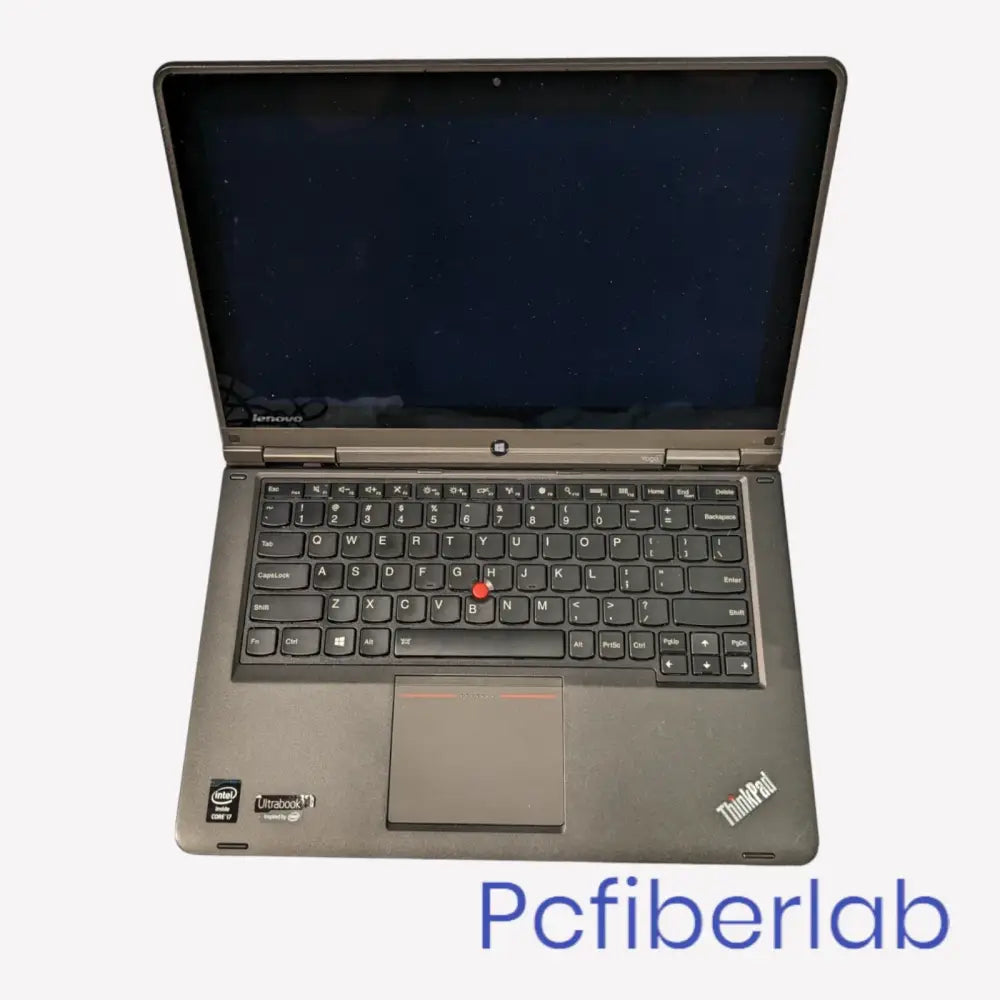

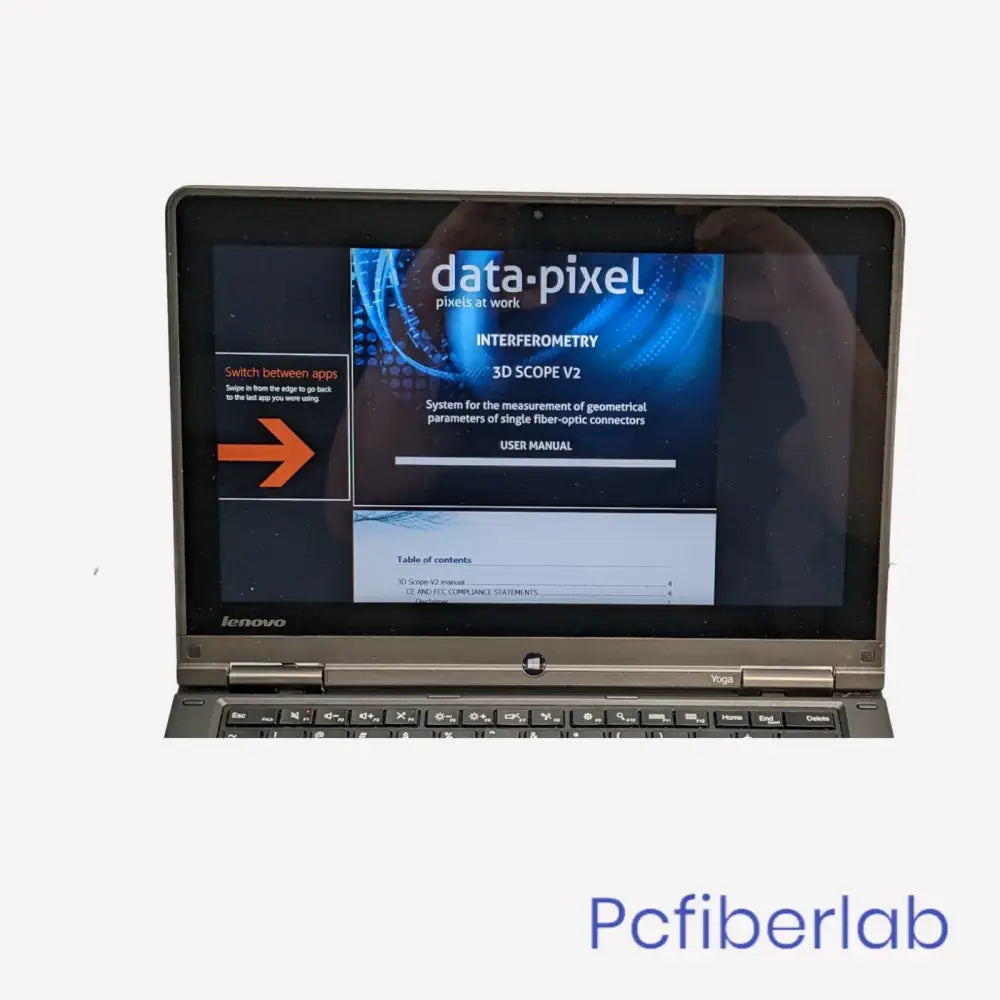

2. PC laptop LENOVO YOGA

   i7-4500u 8GB 120GB SSD Windows 8.1

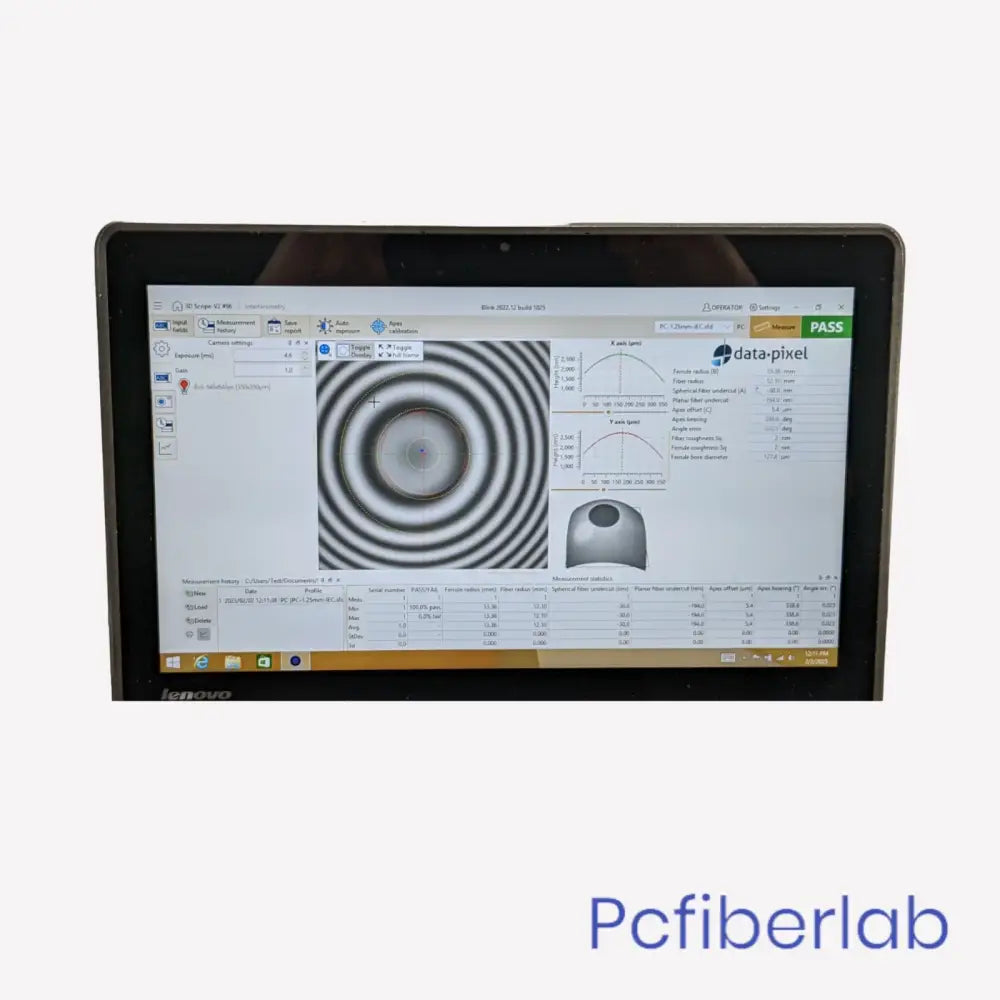

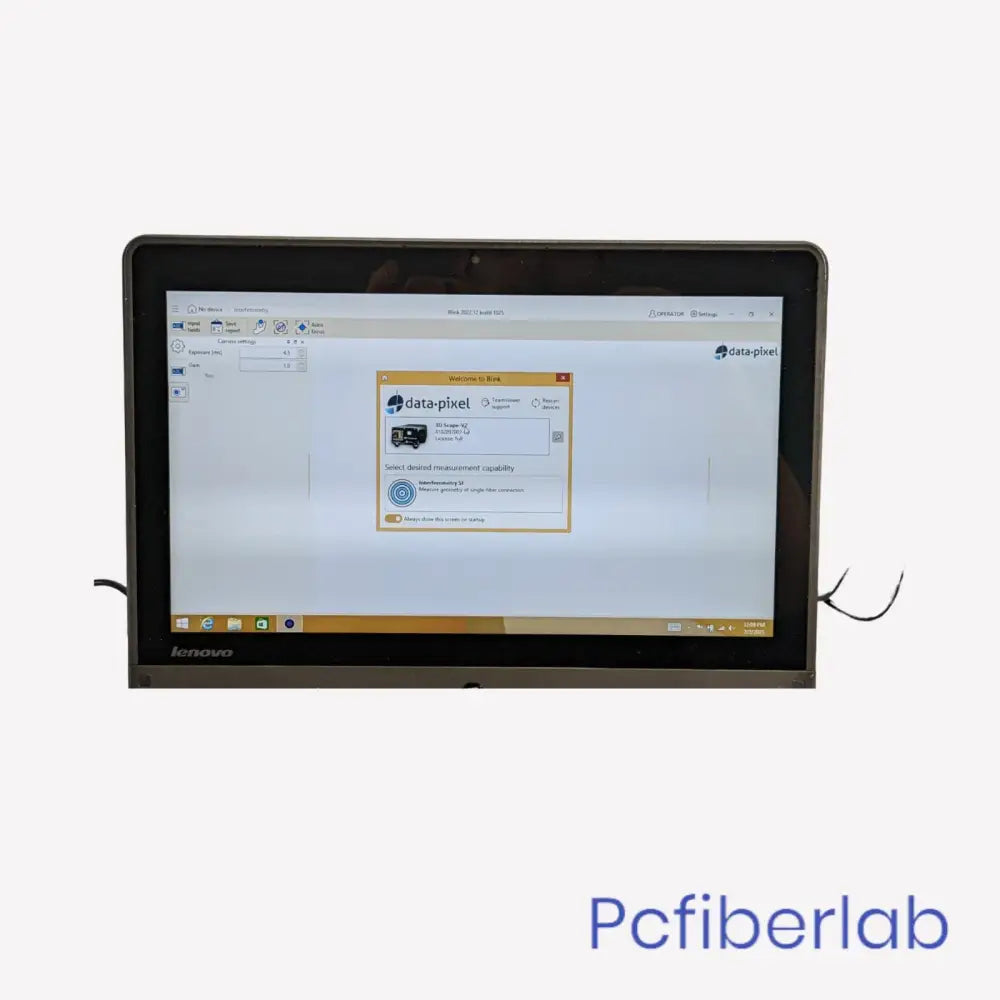

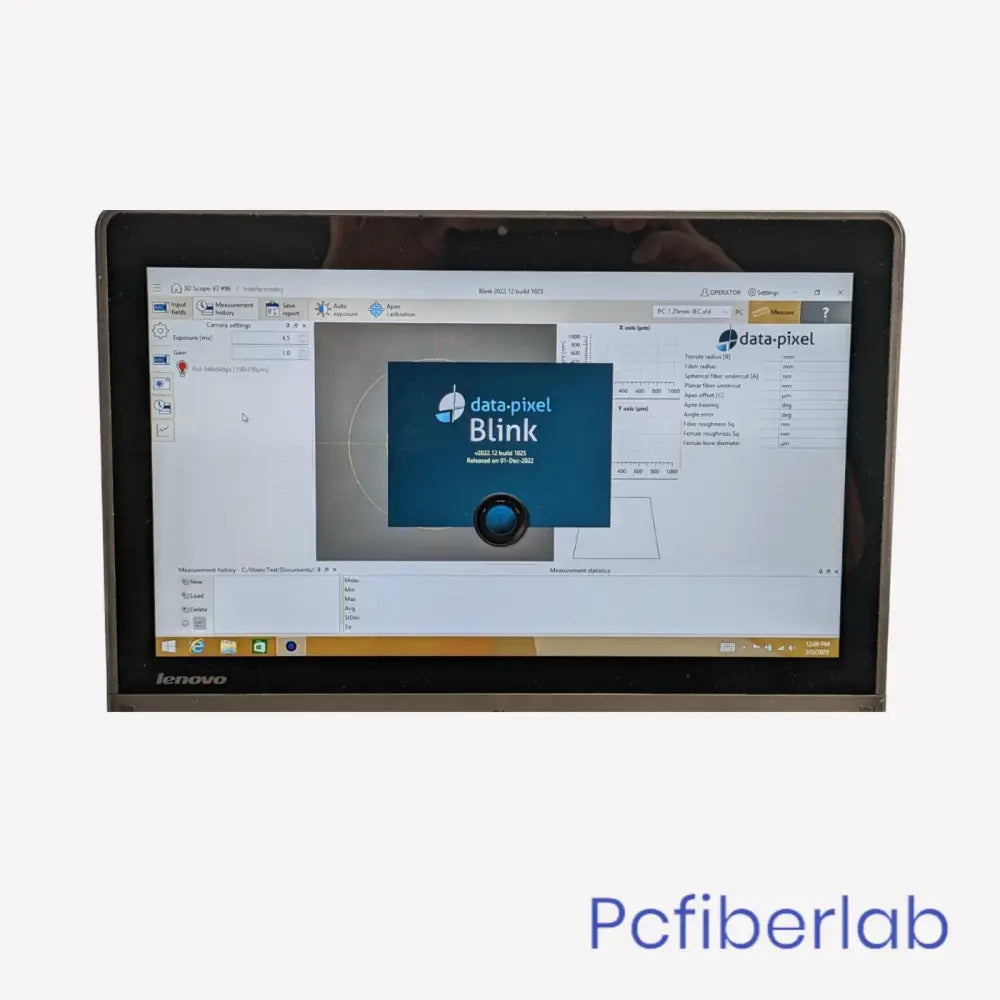

3. Data-Pixel Blink Software

   with full license, manuals, and all drivers installed.

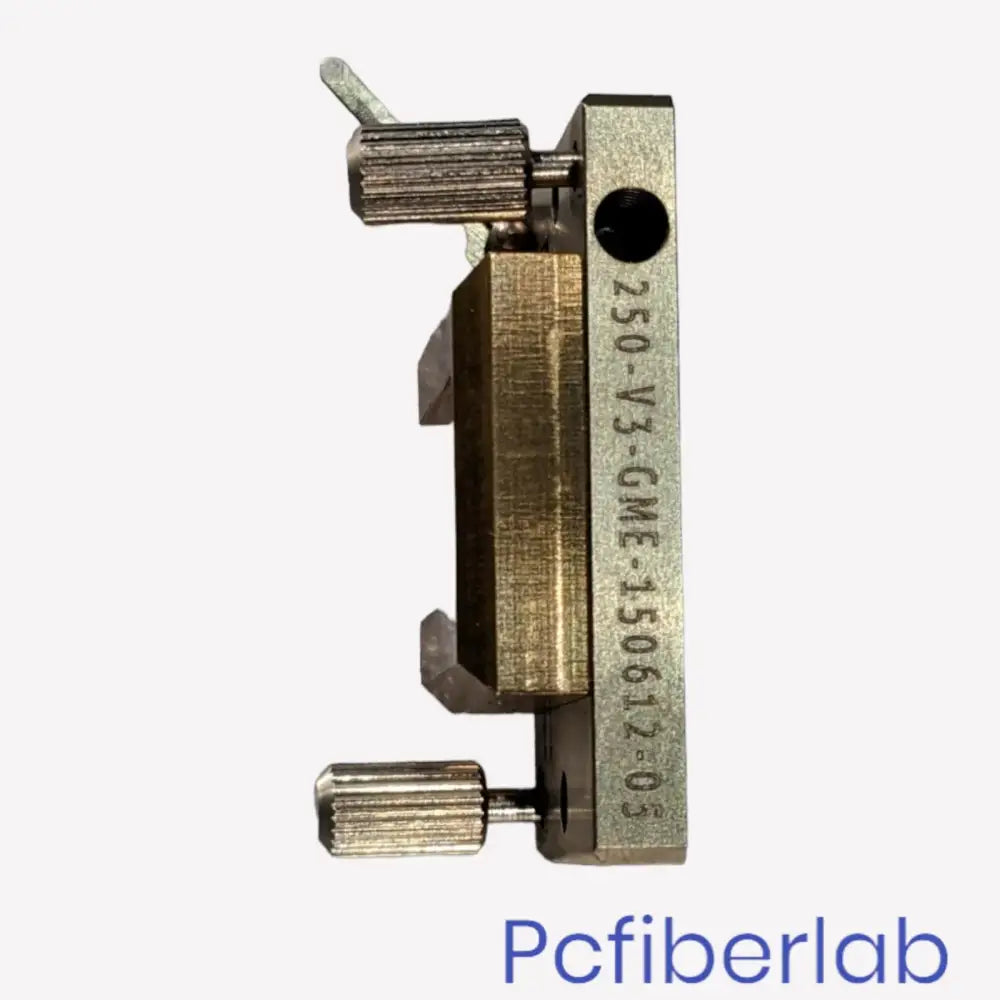

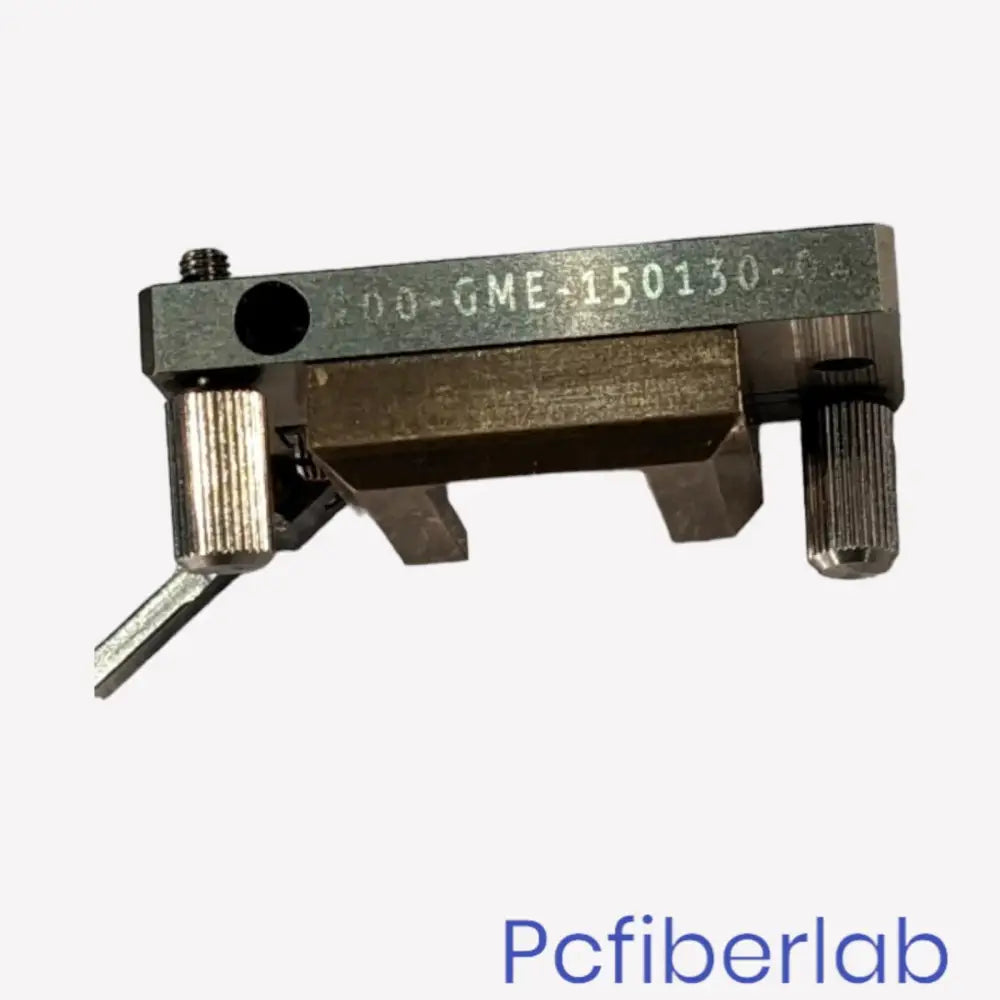

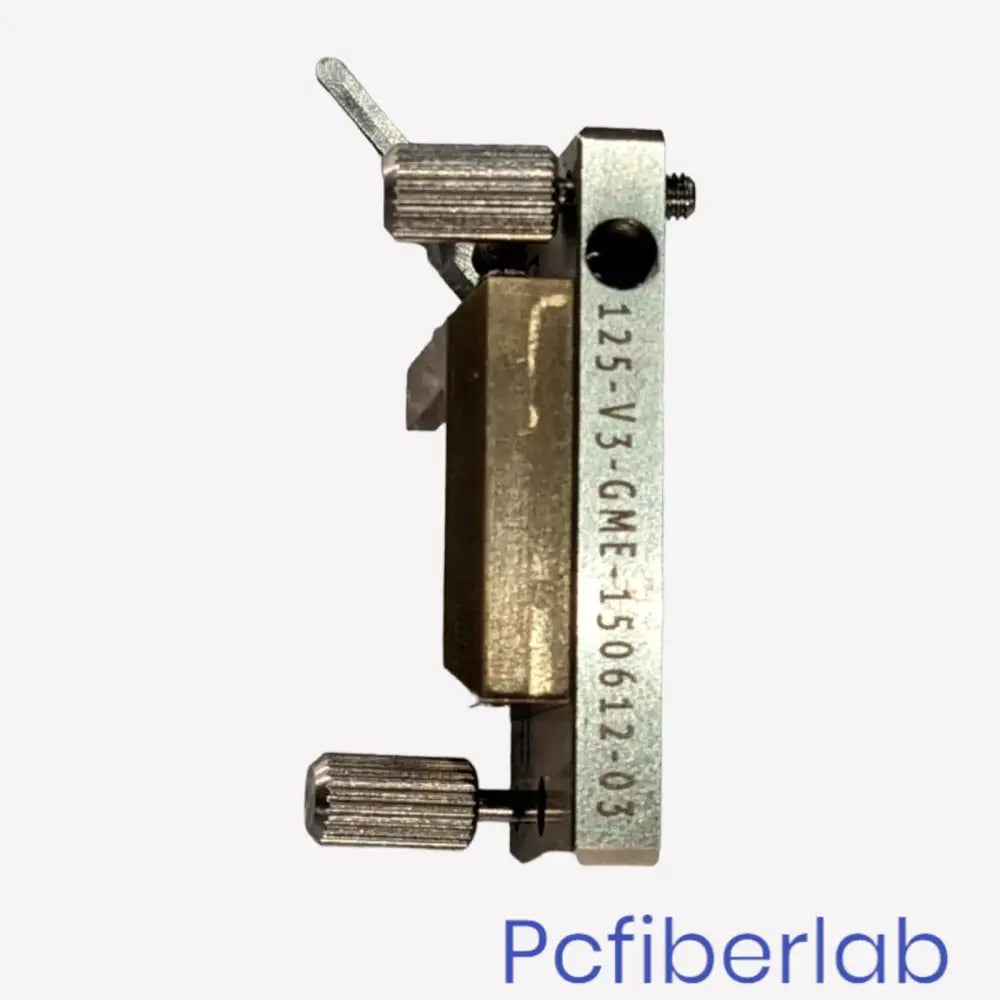

4. 30-FL-001247  Flange 1.25mm
5. 30-FL-001839  Flange 2.00 mm
6. 30-FL-001248  Flange 2.50 mm
7. 10-AD-001013  Adapter 1.25mm LC
8. 10-AD-000552  Adapter 2.50mm SC

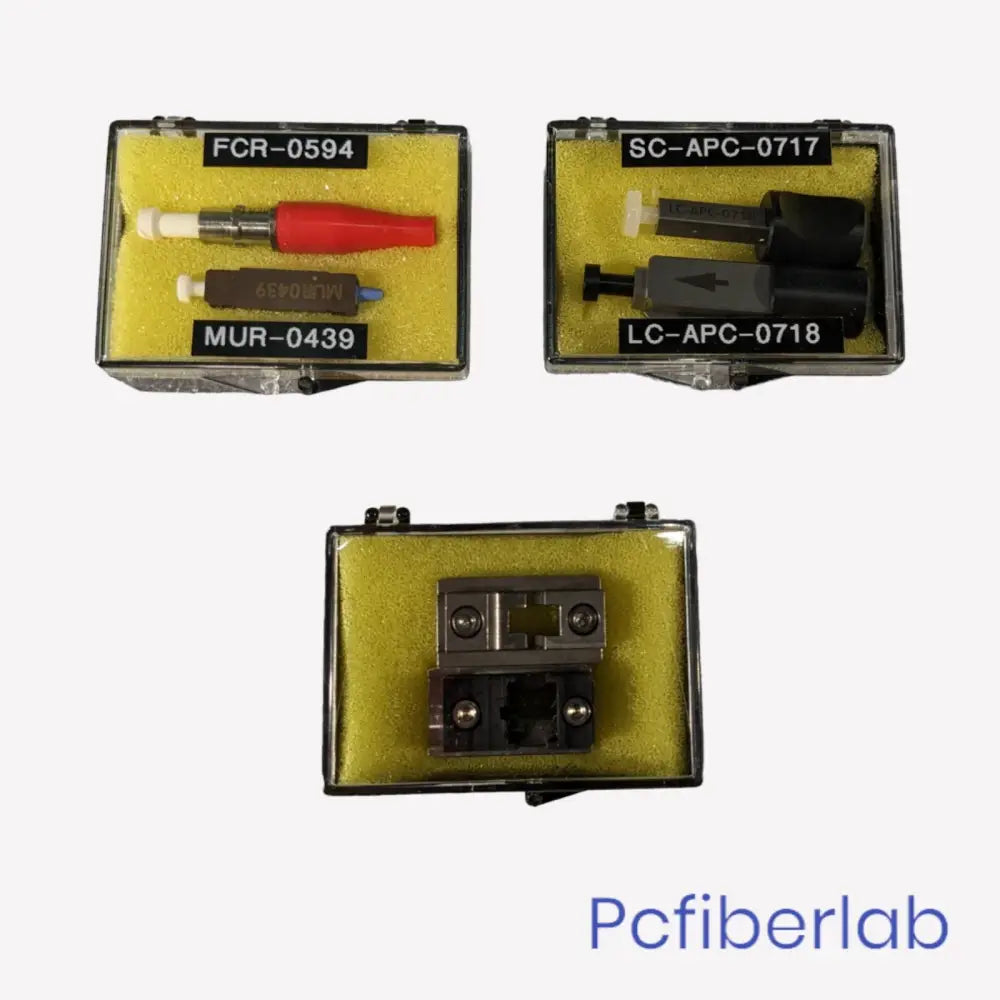

9. FCR0594 ST-PC  for calibration
10. LC-APC-0718  for calibration
11. SC-APC-0717  for calibration
12. MUR0439  for calibration
13. power adapter
14. USB cable

The Data-Pixel 3D Scope offers an accurate, entry-level price interferometer solution for detailed surface inspection of single fibers. This system provides precise 3D interferometer results for Lemo F2, ST, SC, FC, LC APC, and PC connectors.

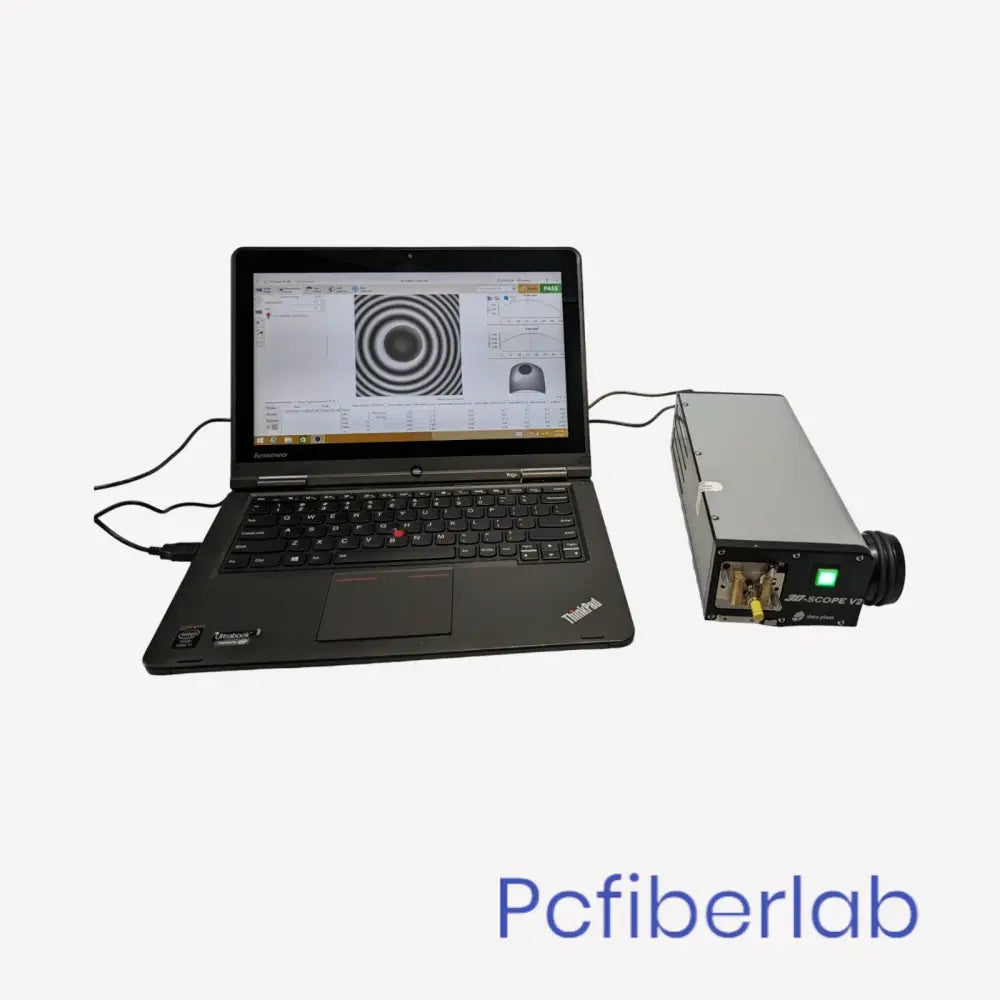

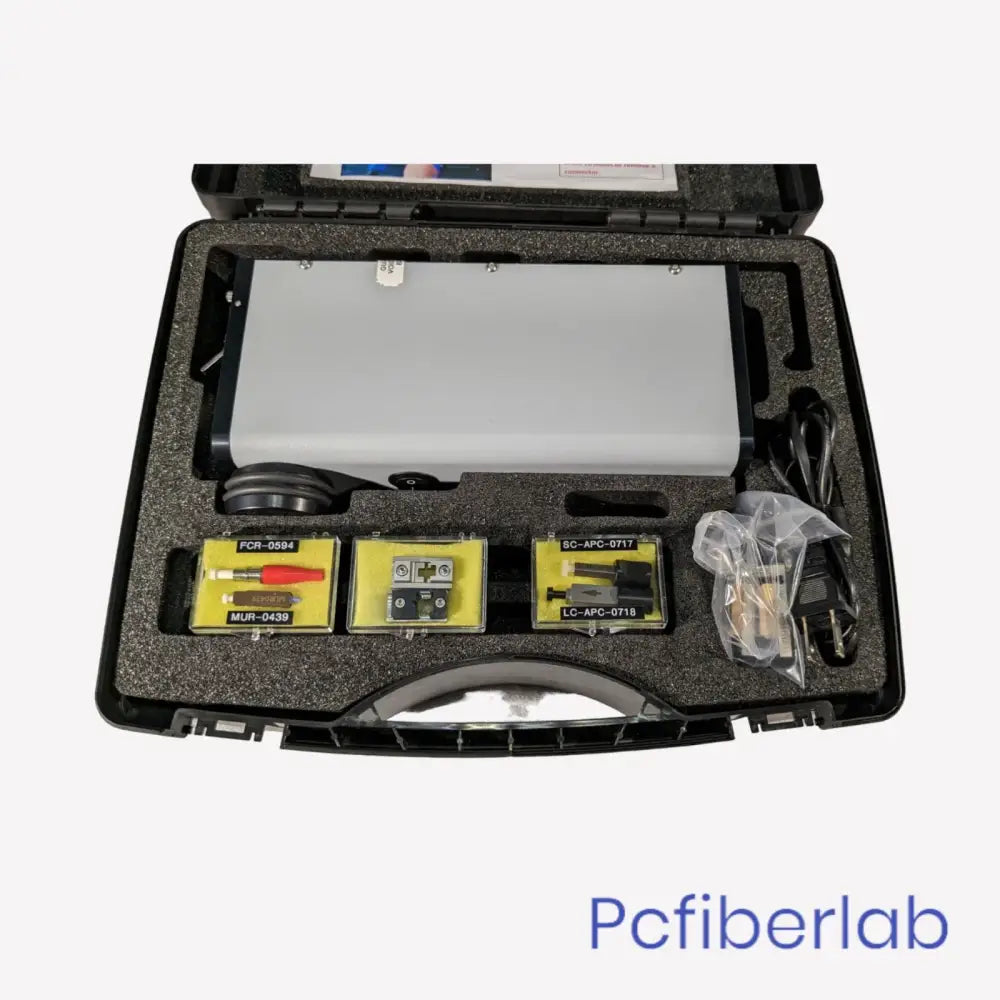

The set includes a Lenovo Yoga i7-4500u laptop with Windows 8.1, pre-installed Data-Pixel Blink Software, and all necessary manuals and drivers. The 3D Scope-V2 unit features manual focus and Blink interferometry, accompanied by a power adapter and USB cable. The kit also comes with various flanges (1.25mm, 2.00mm, 2.50mm), adapters (1.25mm LC, 2.50mm SC), and calibration accessories for ST-PC, LC-APC, SC-APC, and MUR0439.
